VIEW ORIGINAL IMAGE SKU:
N/A
Art

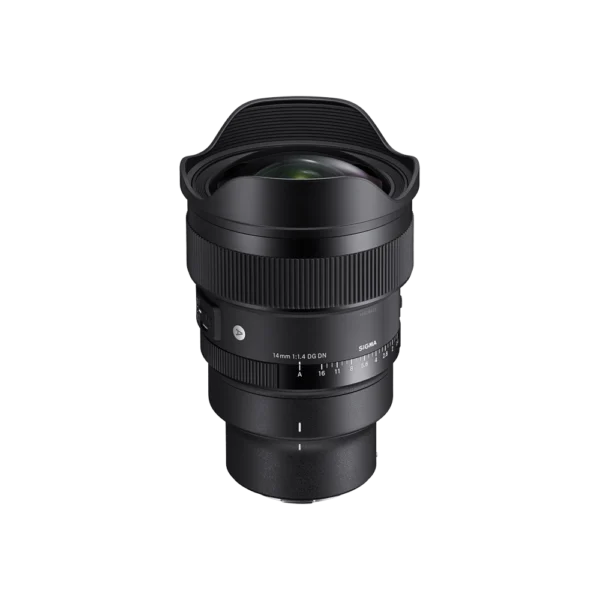

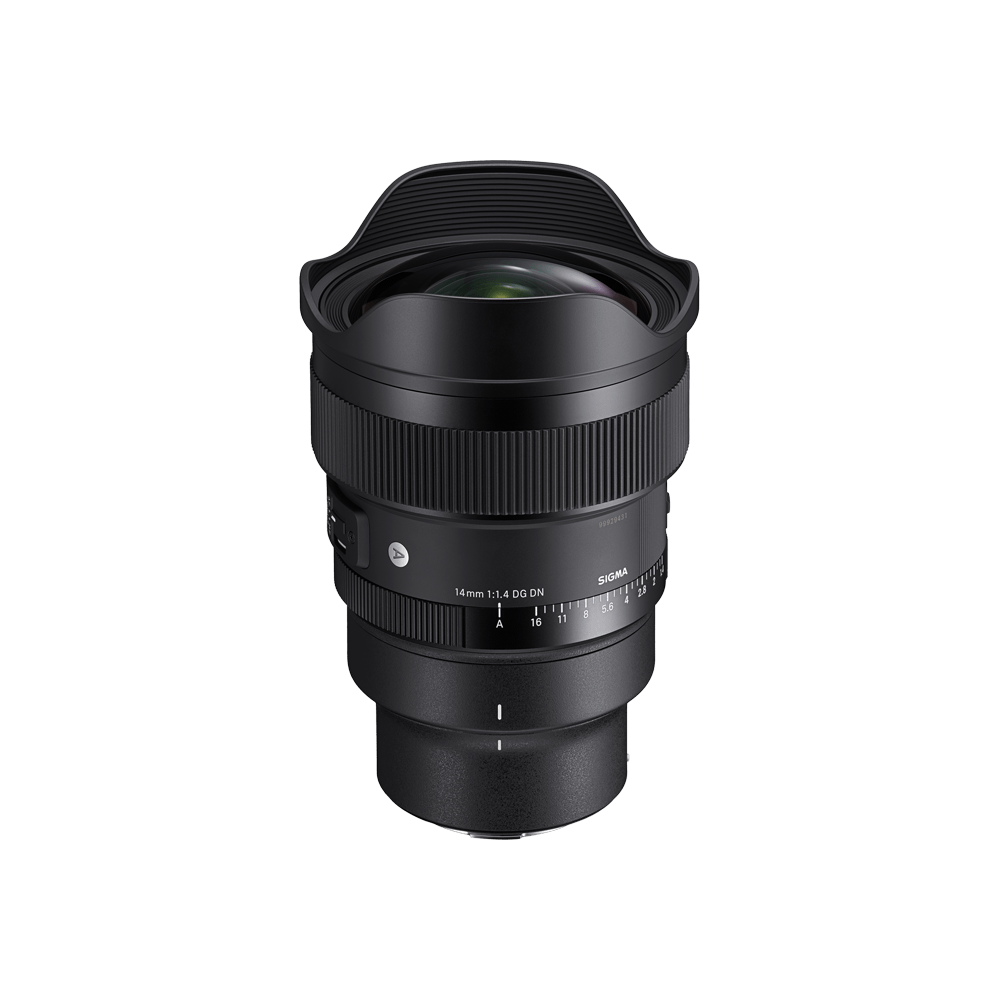

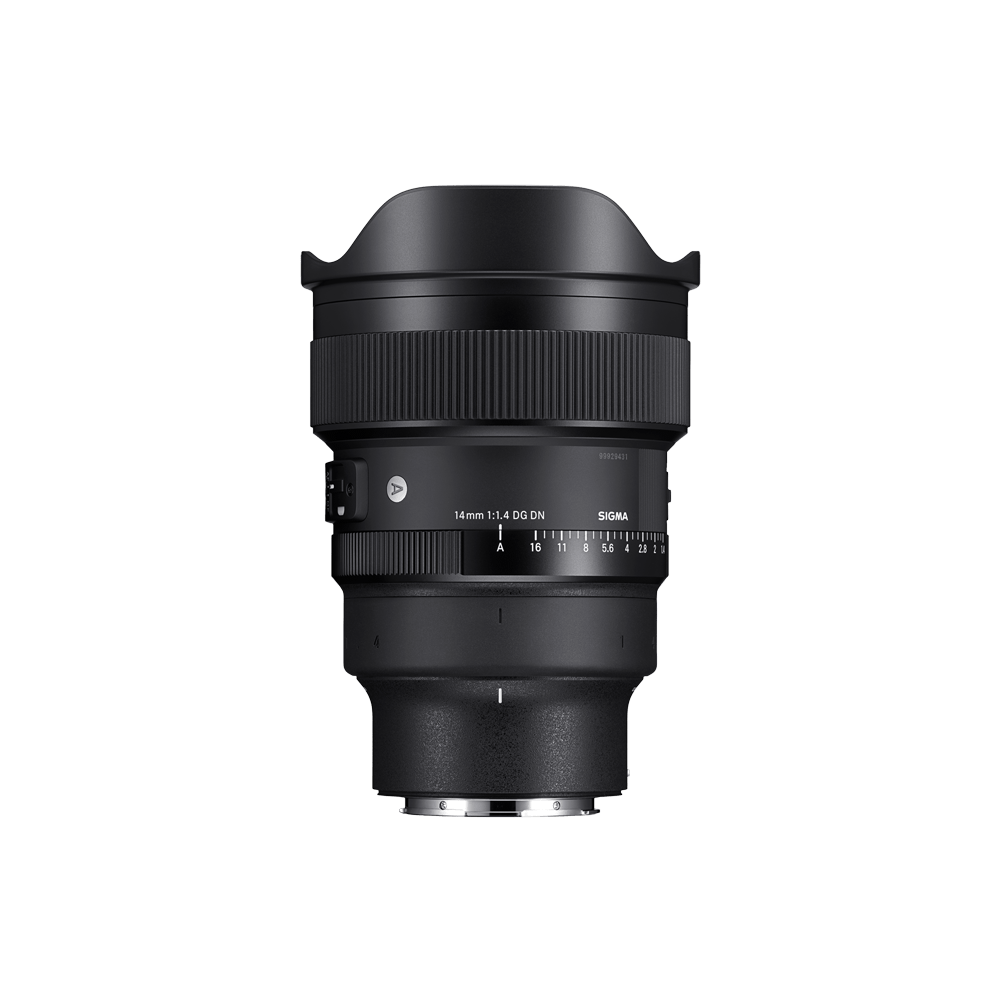

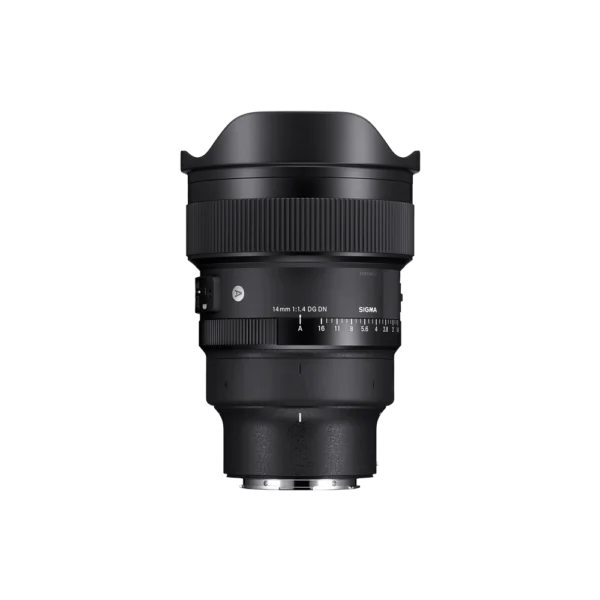

14MM F1.4 DG DN | A
₨ 412,000
- World’s first 14mm F1.4 lens
- Outstanding optical performance
- Dust and splash resistant structure
- Responsive, quiet autofocus
- Manual Focus Lock switch
- Lens Heater Retainer
- Locking front cap with filter storage slots
- Rear Filter Holder
- Removable tripod socket
- Aperture ring with de-click function
- Compatible with Lens Aberration Correction*
Camera Type
Mirrorless
Corresponding Mount
L-Mount, Sony E-mount
Sensor Format
Full-frame [DG]
Lens Construction
19 elements in 15 groups (3 FLD, 1 SLD, and 4 aspherical elements)
Angle of View
114.2°
Number of Diaphragm Blades
11 (rounded diaphragm)
Minimum Aperture
F16
Minimum Focusing Distance
30cm / 11.9in.
Maximum Magnification Ratio
1:11.9
Filter Size
-
Dimensions (Diameter × Length)
L-Mount:φ101.4mm × 149.9mm / φ4.0in. × 5.9in.
Sony E-mount:φ101.4mm × 151.9mm / φ4.0in. × 6.0in.
* The length of a lens is measured from the filter surface to its mount.
Sony E-mount:φ101.4mm × 151.9mm / φ4.0in. × 6.0in.
* The length of a lens is measured from the filter surface to its mount.
Weight
L-Mount:1,170g / 41.3oz.
Sony E-mount:1,160g / 40.9oz.
Sony E-mount:1,160g / 40.9oz.
Edition Number
A023
Supplied Accessories
Case
COVER LENS CAP LC1014-01
REAR CAP LCR II
TRIPOD SOCKET TS-141
PROTECTIVE COVER PT-41
GUIDE PLATE GP-11
COVER LENS CAP LC1014-01
REAR CAP LCR II
TRIPOD SOCKET TS-141
PROTECTIVE COVER PT-41
GUIDE PLATE GP-11
Mount / Product Barcode
L-Mount:00-85126-45169-1 (DISCONTINUED)
Sony E-mount:00-85126-45165-3 (DISCONTINUED)
Sony E-mount:00-85126-45165-3 (DISCONTINUED)
Camera Compatibility
Notes
* The appearance and specifications of the product are subject to change.
* This product is developed, manufactured and sold based on the specifications of E-mount which was disclosed by Sony Corporation under the license agreement with Sony Corporation.
* L-Mount is a registered trademark of Leica Camera AG.
* This product is developed, manufactured and sold based on the specifications of E-mount which was disclosed by Sony Corporation under the license agreement with Sony Corporation.
* L-Mount is a registered trademark of Leica Camera AG.
Ultra wide-angle 14mm with a maximum aperture of F1.4
Optical design with 19 elements in 15 groups (3 FLD, 1 SLD and 4 aspherical elements) corrects aberrations and sagittal coma flare. It maintains crisp star detail across the frame at F1.4, while coatings help limit ghosting and flare.

Large φ79mm aspherical lens element
A large-diameter aspherical element is central to achieving both the bright F1.4 aperture and strong edge-to-edge resolution.

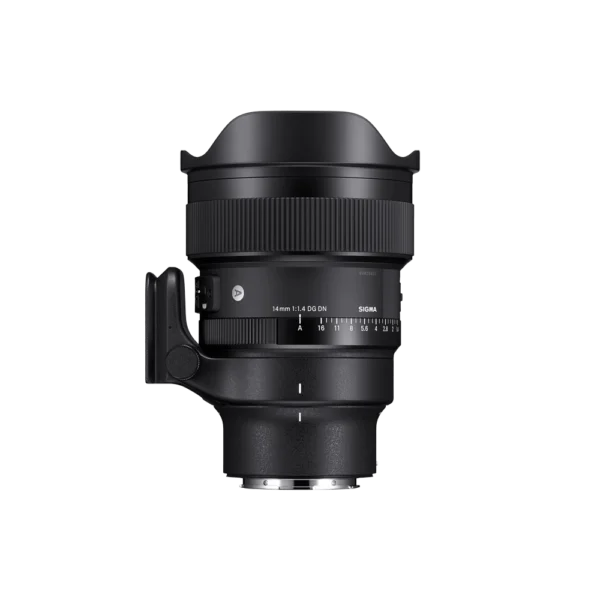

Tripod socket
The included, removable TS-141 Arca-Swiss-compatible socket improves stability for this front-heavy lens and allows lens-heater clearance.

MFL (Manual Focus Lock) switch
When the MFL switch is set to LOCK, unintended operation of the focus ring will not shift focus. This is especially useful for long exposures and starscape shooting.

Lens heater retainer
A front lip helps prevent a fitted lens heater from creeping forward and appearing in the image. A lens heater is not included.

Rear filter holder
An integrated holder accepts sheet-type rear filters and includes a locking mechanism to help prevent accidental removal.

Special front cap with two filter slots
The supplied LC1014-01 cover cap locks in place and stores up to two rear filters, protecting them from dirt and scratches.

Art-line durability and practical shooting controls
The body provides an AFL button and aperture ring, with dust- and splash-resistant construction and a water- and oil-repellent front coating. HLA autofocus is fast, quiet and accurate. Lightweight structural materials support a robust body.

Control layout and protective structure
Focus mode, aperture-ring lock, AFL, MFL and aperture click control are positioned for direct access. The lens is dust- and splash-resistant, but it is not waterproof.

LENS CONSTRUCTION
SLD glassFLD glassAspherical lens
MTF CHART
DIFFRACTION MTF
GEOMETRICAL MTF
| Spatial frequency | S: Sagittal Line | M: Meridional Line |
| 10lp/mm | ||
| 30lp/mm |
MTF CHART GUIDE
MTF (Modulation Transfer Function) charts illustrate how faithfully the lens reproduces image contrast from the center to the edge of the frame. Higher curves indicate greater contrast or resolution.
The vertical axis represents contrast (0 to 1). The horizontal axis shows image height in millimeters. The charts are measured at maximum aperture; plotted results depend on correction settings.
Solid curves represent sagittal lines; dashed curves represent meridional lines. Red indicates 10 line pairs/mm and blue indicates 30 line pairs/mm.
Inner focus system
Focusing is performed by moving internal optical groups so the lens maintains a consistent external length.
HLA (High-response Linear Actuator)
The HLA linear autofocus motor is designed for fast, quiet and accurate focusing.
Compatible with Lens Aberration Correction
Supported cameras can apply in-camera correction for compatible optical aberrations. Available corrections vary by camera.
Super Multi-Layer Coating
This coating reduces internal reflections that can cause flare and ghosting.
Water- and oil-repellent coating
A protective coating on the frontmost element helps make dirt, water and oil easier to remove.
Aperture ring
A dedicated ring provides direct control of the aperture.
Aperture ring click switch
Switch between clicked aperture stops for stills and smoother ring movement where supported.
Aperture ring lock switch
The lock can secure the ring at A, or prevent it moving to A when using manual aperture settings.
AFL button
On compatible cameras, a user-selected camera function may be assigned to the AFL button.
MFL (Manual Focus Lock) switch
Disables focus-ring operation in the LOCK position to reduce accidental shifts during long-exposure shooting.
Rear filter holder
A built-in rear slot accepts sheet filters and includes a retention lock.
Lens heater retainer
A front lip helps keep a wrapped lens heater from sliding into the frame. Heater is not supplied.
Focus mode switch
Allows AF/MF focusing modes to be selected from the lens barrel.
Linear / Non-linear focus (L-Mount only)
Supported L-Mount camera settings can change the response of the manual-focus ring.
Dust- and splash-resistant structure
The housing is sealed against dust and splashes in normal shooting conditions; it is not waterproof.
Lens construction: 19 elements in 15 groups
Includes 3 FLD, 1 SLD and 4 aspherical elements for optical correction and bright F1.4 performance.
High-speed autofocus support
HLA focusing is designed for responsive autofocus on compatible cameras.
DMF and AF+MF support
Supported camera bodies can provide manual-focus adjustment alongside autofocus.
AF assist (Sony E-mount only)
Sony E-mount camera AF assist features can be supported depending on body compatibility.
Tripod socket TS-141 supplied
The included detachable Arca-Swiss-type tripod socket improves mounted stability.
Cover lens cap LC1014-01
The special locking cover cap protects the front element and can store up to two rear sheet filters.
Sigma USB DOCK UD-11 (L-Mount only)
The separately sold UD-11 can be used with the lens for supported maintenance functions.
Designed to minimize flare and ghosting
Optical design and coating choices help maintain clarity when photographing bright points of light.
SIGMA proprietary MTF measurement
Each lens is checked using SIGMA’s proprietary MTF measurement process.
11-blade rounded diaphragm
The rounded 11-blade design supports natural-looking out-of-focus highlights.
High-precision brass bayonet mount
The brass mount supports accurate fit and long-term durability.
VIEW ORIGINAL IMAGE
CameraSIGMA fp L
Shutter Speed1/60s
Lens F NumberF1.4
ISO1250
Focal Length14mm
PhotographerRino Giardiello

CameraSIGMA fp L
Shutter Speed1/60s
Lens F NumberF1.4
ISO1000
Focal Length14mm
PhotographerRino Giardiello

CameraSONY α7R V
Shutter Speed1/30s
Lens F NumberF8
ISO160
Focal Length14mm
PhotographerTakafumi Kojo

CameraSONY α1
Shutter Speed30s
Lens F NumberF1.4
ISO1600
Focal Length14mm (softening filter)
PhotographerShigemi Numazawa

CameraSONY α1
Shutter Speed30s
Lens F NumberF1.4
ISO1600
Focal Length14mm (softening filter)
PhotographerShigemi Numazawa

CameraSIGMA fp L
Shutter Speed1/2000s
Lens F NumberF1.4
ISO100
Focal Length14mm
PhotographerDarren White

CameraSIGMA fp L
Shutter Speed3.2s
Lens F NumberF4.5
ISO100
Focal Length14mm
PhotographerDarren White

CameraSONY α7R III
Shutter Speed30s
Lens F NumberF1.4
ISO800
Focal Length14mm (softening filter)
PhotographerShigemi Numazawa
