SKU:
260
Art

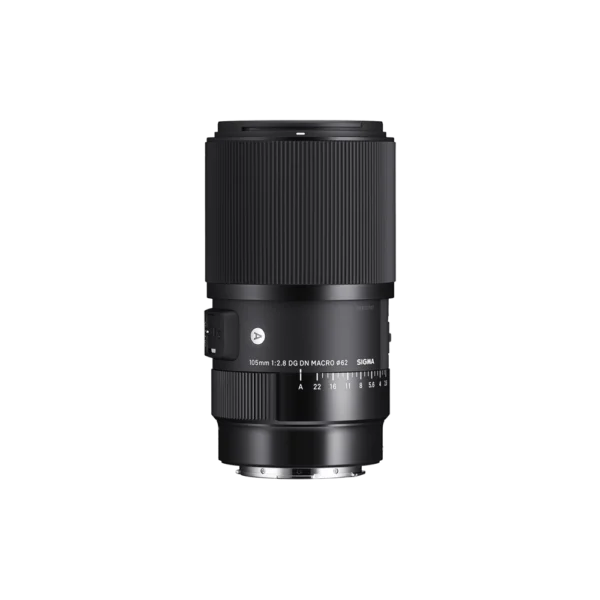

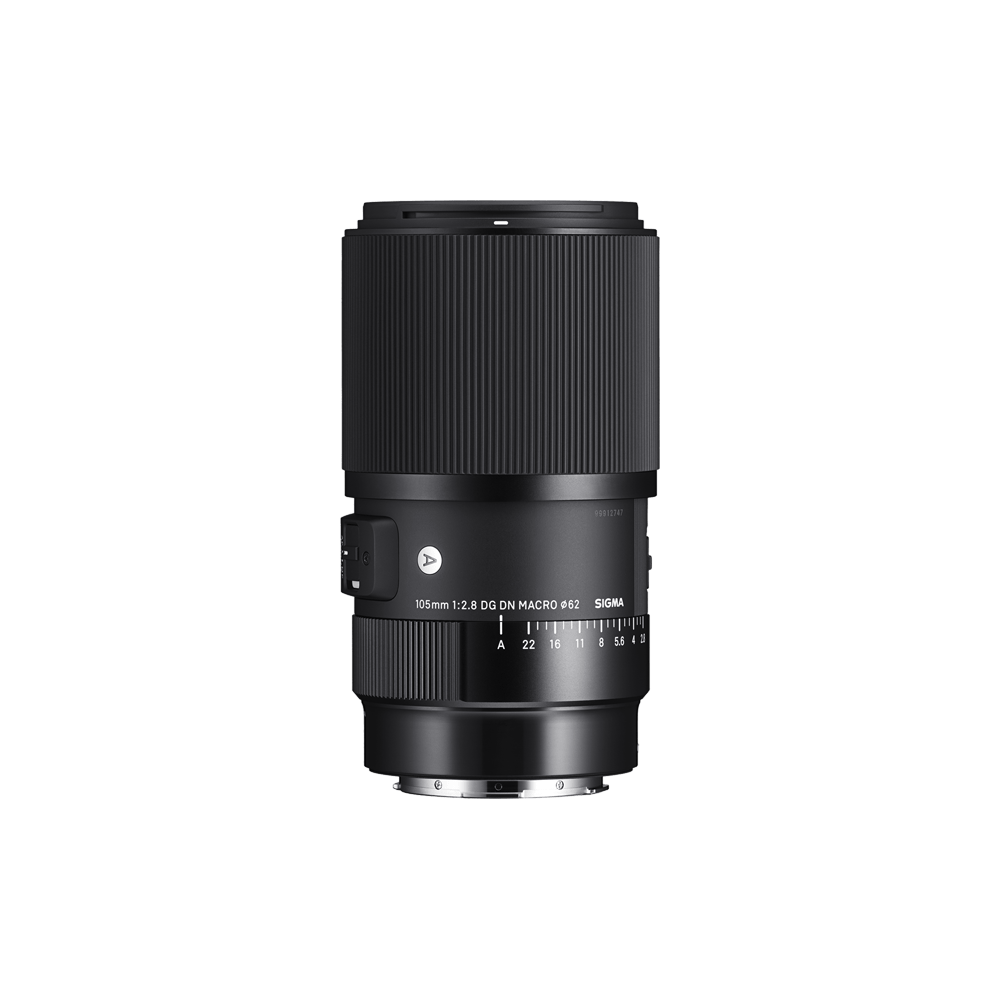

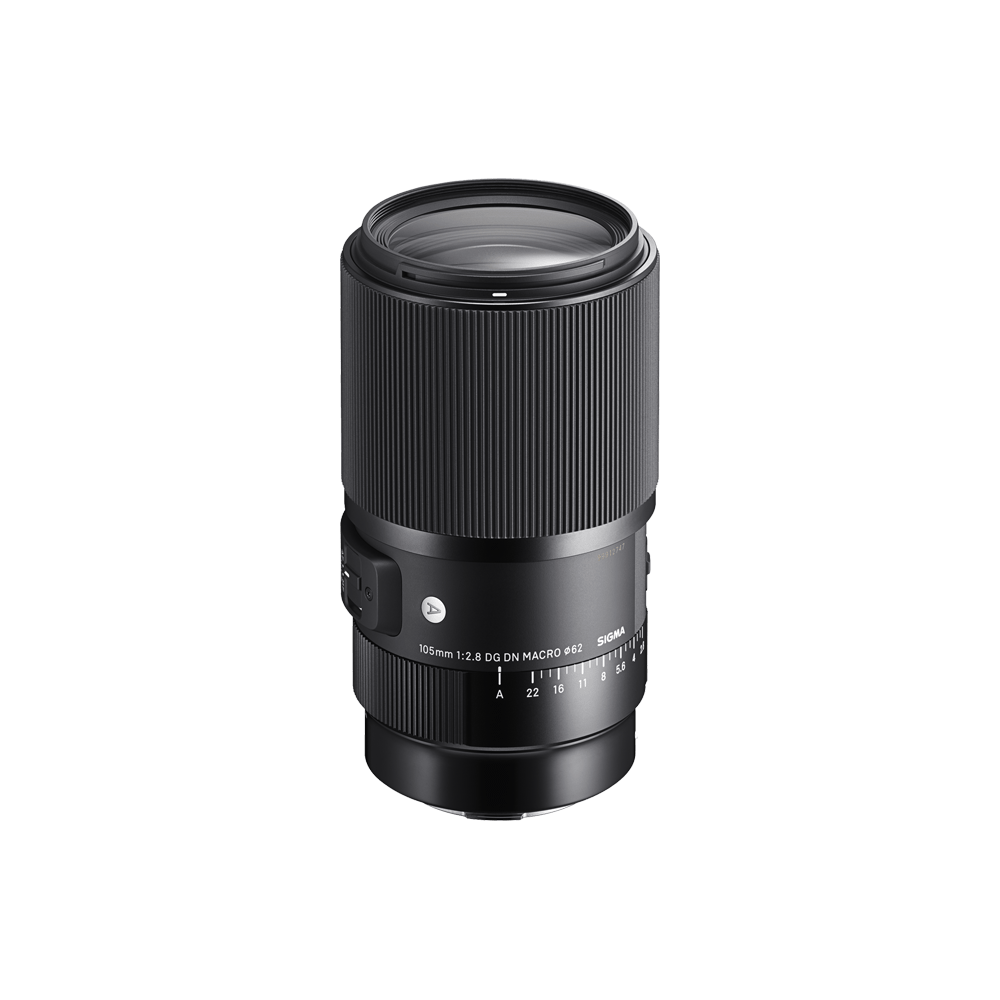

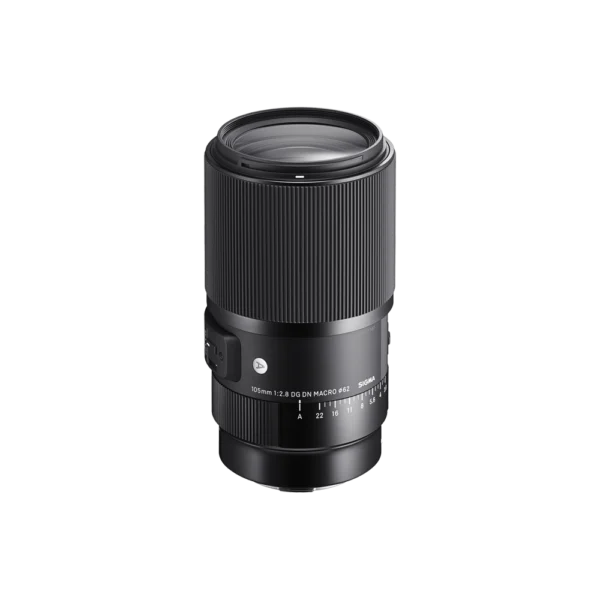

105MM F2.8 DG DN MACRO | A
₨ 225,000
- Exceptional sharpness at all distances
- Optical design ensures minimal aberrations
- Hyper Sonic Motor (HSM) for high speed AF
- Focus limiter switch
- Aperture ring with de-click & lock switches
- Customizable AFL button
- Dust and splash resistant structure
- Water- and oil-repellent coating
- Designed to minimize flare and ghosting
- Compatible with TC-1411 (1.4x) and TC-2011 (2.0x) Teleconverters (L-Mount only)
- Compatible with Lens Aberration Correction*
Camera Type
Mirrorless
Corresponding Mount
L-Mount, Sony E-mount
Sensor Format
Full-frame [DG]
Lens Construction
17 elements in 12 groups
Angle of View
23.3°
Number of Diaphragm Blades
9 (rounded diaphragm)
Minimum Aperture
F22
Minimum Focusing Distance
29.5cm / 11.6in.
Maximum Magnification Ratio
1:1 (life size)
Filter Size
φ62mm
Dimensions (Diameter x Length)
L-Mount: φ74mm × 133.6mm / φ2.9in. × 5.3in.
Sony E-mount: φ74mm × 135.6mm / φ2.9in. × 5.3in.
Sony E-mount: φ74mm × 135.6mm / φ2.9in. × 5.3in.
* Length measured from the filter surface to the mount.
Weight
L-Mount: 715g / 25.2oz.
Sony E-mount: 710g / 25.0oz.
Sony E-mount: 710g / 25.0oz.
Edition Number
A020
The edition code indicates the year the lens was first released; the year of manufacture may differ.
Supplied Accessories
Case
Lens Hood LH653-01
Front Cap LCF-62mm III
Rear Cap LCR II
Lens Hood LH653-01
Front Cap LCF-62mm III
Rear Cap LCR II
Mount / Product Barcode
L-Mount: 00-85126-26069-9
Sony E-mount: 00-85126-26065-1
Sony E-mount: 00-85126-26065-1
Camera Compatibility
* L-Mount is a trademark of Leica Camera AG. This product is sold based on Sony E-mount specifications disclosed under license. Dust and splash resistance does not make the lens waterproof.
Everything required in a mid-telephoto macro lens at the highest level
Excellent definition from 1:1 close-ups through distant subjects is achieved by correcting optical aberrations, especially longitudinal chromatic aberration. Smooth foreground and background bokeh allows natural separation of a subject.
On L-Mount, compatible TC-1411 (1.4x) and TC-2011 (2.0x) teleconverters offer higher magnification while retaining a useful working distance.
On L-Mount, compatible TC-1411 (1.4x) and TC-2011 (2.0x) teleconverters offer higher magnification while retaining a useful working distance.
Sigma Art-line optical and autofocus performance
The Art optical design preserves clarity from center to edge, while reducing coma, flare and ghosting. The Hyper Sonic Motor (HSM) provides quiet, accurate focus and supports modern mirrorless autofocus features, subject to the camera body. Sigma manufactures the lens at its Aizu facility in Japan.

SLD glass
Professional controls and dependable build quality
Includes an AF/MF focus-mode switch, a macro-friendly focus limiter, an assignable AFL button, a marked aperture ring, an aperture click switch, and an aperture lock switch. The lens has dust- and splash-resistant construction and water- and oil-repellent front coating.
* Camera compatibility determines customizable button functions. The lens is resistant to light rain, not waterproof.
* Camera compatibility determines customizable button functions. The lens is resistant to light rain, not waterproof.

Lens Construction

SLD glass
MTF CHART
Diffraction MTF

Geometrical MTF

Diffraction MTF (+TC-1411, 147mm)

Geometrical MTF (+TC-1411, 147mm)

Diffraction MTF (+TC-2011, 210mm)

Geometrical MTF (+TC-2011, 210mm)

Spatial frequency
S: Sagittal Line
M: Meridional Line
10lp/mm
30lp/mm
MTF CHART GUIDE
The MTF (Modulation Transfer Function) evaluates how effectively a lens reproduces subject contrast. The horizontal axis is image height from the frame center, while the vertical axis is contrast from 0 to 1. Curves closer to 1 indicate better contrast or resolution. Solid curves represent sagittal detail; dashed curves represent meridional detail. The 10lp/mm curves describe contrast, while the 30lp/mm curves describe finer-detail performance.
* Curves are measured at maximum aperture. Distortion correction and mount/camera settings can affect image-height interpretation.
* Curves are measured at maximum aperture. Distortion correction and mount/camera settings can affect image-height interpretation.
Dust- and splash-resistant structure
Seals at vulnerable points help protect against dust and splashes. The lens is not waterproof.
High-precision, durable brass bayonet mount
Precision-machined brass mount construction supports a strong and accurate camera connection.
Water- and oil-repellent coating
A front-element treatment helps reduce adhesion of water drops and oily fingerprints.
AFL button
An assignable autofocus-lock/function button provides quick access to compatible camera functions.
Aperture ring lock switch
Locks the aperture ring in its automatic position or prevents it from entering that position.
Aperture ring click switch
Enables or disables aperture-ring clicking for still photography or smoother video operation.
Aperture ring
Allows direct adjustment of aperture on supported systems.
Rounded diaphragm
A nine-blade rounded diaphragm helps create smooth-looking out-of-focus highlights.
Exclusive low-dispersion glass
One SLD glass element helps correct chromatic aberration and maintain clean detail.
Compatible with Lens Aberration Correction
Compatible camera bodies can apply supported in-camera lens corrections. Availability depends on camera settings.
Focus Mode Switch
Allows switching between autofocus and manual focus modes.
Focus Limiter
Limits the focusing distance range to reduce unnecessary focus travel during macro work.
HSM (Hyper Sonic Motor)
The Hyper Sonic Motor drives autofocus with accuracy and relatively quiet operation.
Inner focus system
Focusing is achieved by moving lens groups internally, supporting stable handling.
Super Multi-Layer Coating
Optical coating helps suppress reflections, flare and ghosting in difficult lighting.
Lens construction: 17 elements in 12 groups
The optical formula contains 17 elements arranged in 12 groups, including one SLD element.
Compatible with high-speed autofocus
Supports high-speed AF features where the camera body and mount combination allow them.

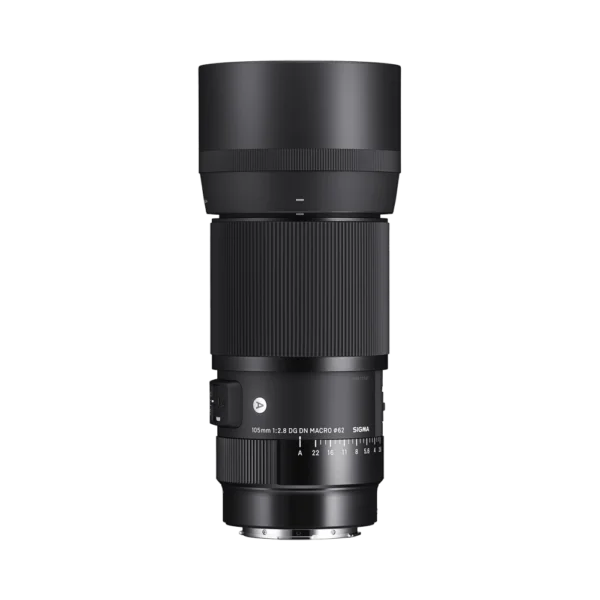

Lens Hood LH653-01
The supplied hood reduces off-axis light reaching the front element.
Compatible with TC-1411 and TC-2011
Sigma teleconverters extend effective focal length and magnification on the L-Mount version only.
Compatible with USB DOCK UD-11
Optional USB DOCK UD-11 can provide supported configuration and firmware functions on L-Mount.
Designed to minimize flare and ghosting
The optical design and coatings are designed to retain contrast in backlit scenes.
Supports DMF and AF+MF
Direct manual focus functions are available when supported by the attached camera and mount.

CameraSIGMA fp
Shutter Speed1/4000s
Lens F NumberF2.8
ISO100
Focal Length105mm
PhotographerNoriko Yamaguchi

CameraSIGMA fp
Shutter Speed1/1250s
Lens F NumberF2.8
ISO400
Focal Length105mm
PhotographerNoriko Yamaguchi

CameraSIGMA fp
Shutter Speed1/250s
Lens F NumberF4
ISO400
Focal Length105mm
PhotographerNoriko Yamaguchi

CameraSONY a7R IV
Shutter Speed1/100s
Lens F NumberF2.8
ISO400
Focal Length105mm
PhotographerOri Saito

CameraSIGMA fp
Shutter Speed1/60s
Lens F NumberF2.8
ISO200
Focal Length105mm
PhotographerNana Misaki

CameraSONY a7R IV
Shutter Speed1/1000s
Lens F NumberF2.8
ISO400
Focal Length105mm
PhotographerAya Iwasaki

CameraSONY a9
Shutter Speed1/800s
Lens F NumberF2.8
ISO250
Focal Length105mm
PhotographerAya Iwasaki

CameraSONY a7R IV
Shutter Speed1/8s
Lens F NumberF2.8
ISO100
Focal Length105mm
PhotographerAya Iwasaki

CameraSIGMA fp
Shutter Speed1/80s
Lens F NumberF11
ISO400
Focal Length105mm
PhotographerYukio Uchida

CameraSIGMA fp L
Shutter Speed1/640s
Lens F NumberF5.8
ISO400
Focal Length105mm
PhotographerAya Iwasaki

CameraSIGMA fp
Shutter Speed1/25s
Lens F NumberF16
ISO400
Focal Length105mm
PhotographerYukio Uchida

CameraSONY a7R IV
Shutter Speed1/60s
Lens F NumberF4.5
ISO125
Focal Length105mm
PhotographerOri Saito

CameraSONY a7R IV
Shutter Speed1/40s
Lens F NumberF5.6
ISO125
Focal Length105mm
PhotographerOri Saito

CameraSIGMA fp
Shutter Speed1/30s
Lens F NumberF2.8
ISO200
Focal Length105mm
PhotographerNana Misaki

CameraSIGMA fp
Shutter Speed1/25s
Lens F NumberF3.2
ISO400
Focal Length105mm
PhotographerYukio Uchida
